Stainless Steel Rolling
Shutters

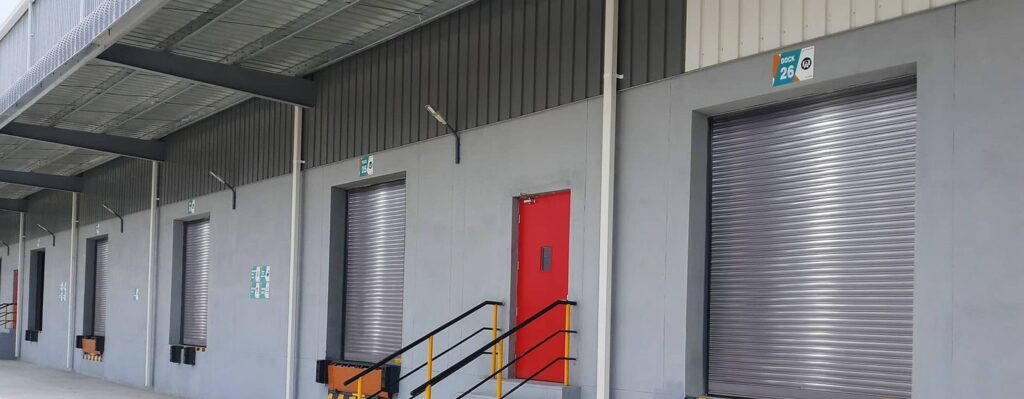

The most popular stainless steel rolling shutter and widely used amongst all the categories of doors is the motorized rolling shutter The symbolic feature of our motorized rolling shutters is its robust structure obtained due to the use of high strength metals in the making of slate and guide profile. This feature acts as a shield and protection against burglary, vandalism & storms.
If on one hand these shutters require low maintenance enabling very less inspection & manual attention then on the other hand our motorised rolling shutters have very easy operation ensuring total customer satisfaction. All these features are developed with vast years of experience in the manufacturing of rolling shutters; we can be stated as one of the oldest and the most trusted name in the manufacture of high grade and high performance Stainless Steel rolling shutters.
Features
➣ All parts of the shutters are manufactured with high Grade Stainless Steel material
➣ SS 304 & 316 available with Matt & Glossy Finish
➣ These shutters can be integrated with S.S Grills, S.S perforated panels & Vision windows to achieve specific customer requirement of ventilation or See though Vision.
➣ Finger-tip control to open and close shutters of any size with the utmost ease from a single push-button switch or a radio remote control transmitter
➣ Our shutters have in-build high performance drives and intelligent, smart controls
➣ Heavy duty drives have weight carrying capacity up to 3000Kgs.
➣ In case of power failure, shutters can be operated manually using a hand crank or chain drive
➣ Shutter drives are inbuilt with special anti drop device and additional safety catch to ensure that the door does not free-fall in any worst conditions
Technical Specification
| Technical Specification | Description | |
|---|---|---|
| Product | Motorized S.S rolling Shutters | |
| Door Dimension | ||
| Width Min./Max. | 1000/12000mm | |
| Height Min./Max. | 1000/14000mm Max. Area 120.0Sqm | |
| Opening Dimension | Vertical | |
| Mounting Location | Inside/Outside | |
| Mounting Surface | Side Brackets : On Concrete /steel Side Guides : on Concrete /Steel/ Masonry | |
| Opening/Closing Speed | 0.05m/sec – 0.1 m/sec | |
| Wind Resistance | 90Km/Hr * Higher Wind Pressure on Request | |
| Door Structure | ||
| Slat Material | Interlocking S.S Slats Std. Steel Grade : 304 (Other steel grades available on request) | |
| Slat Profile | Corrugated Profile (RRSI 74, RRSI 80, RRSI 94) Optional Flat Profile | |
