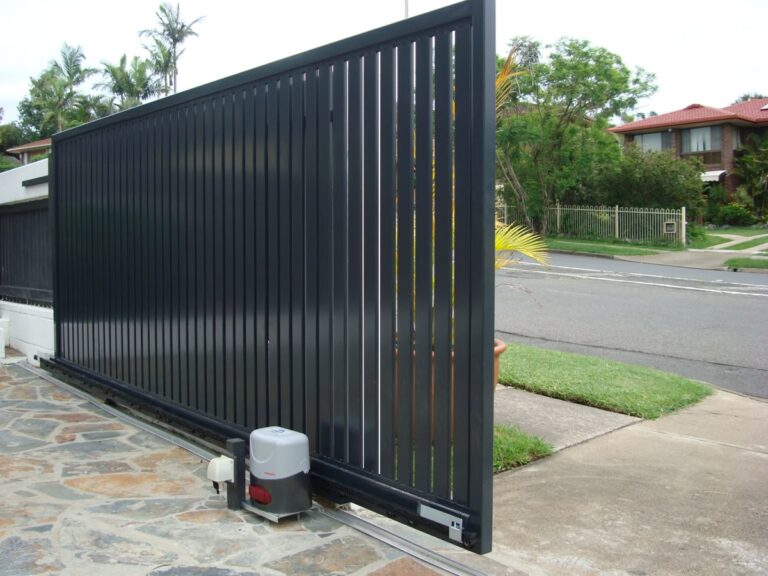

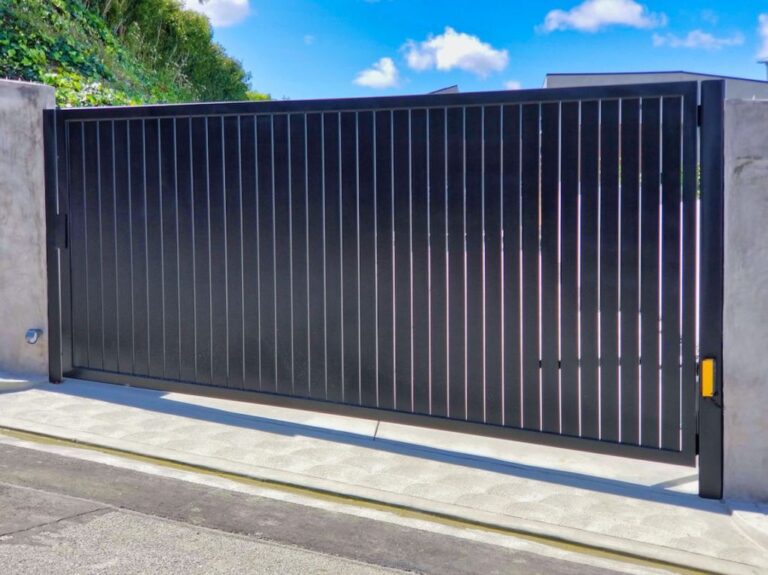

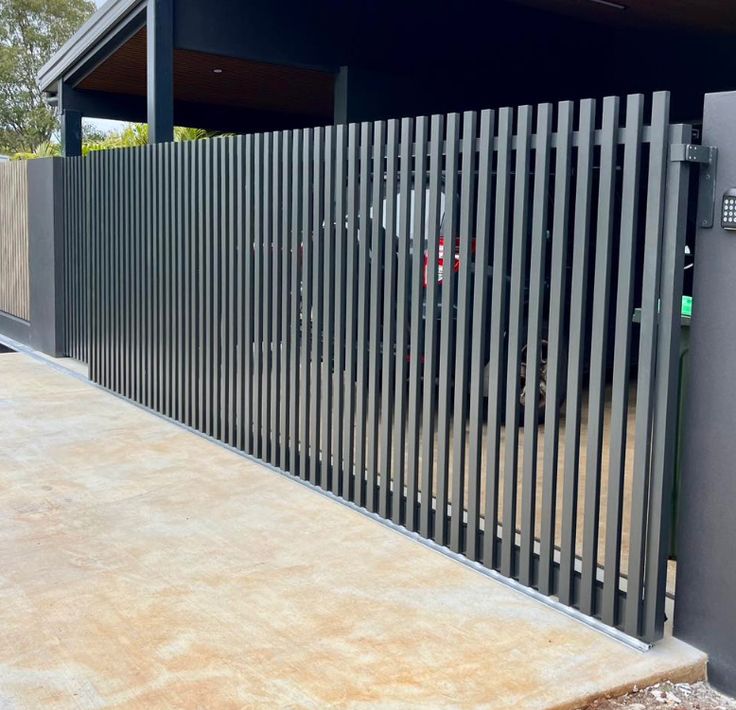

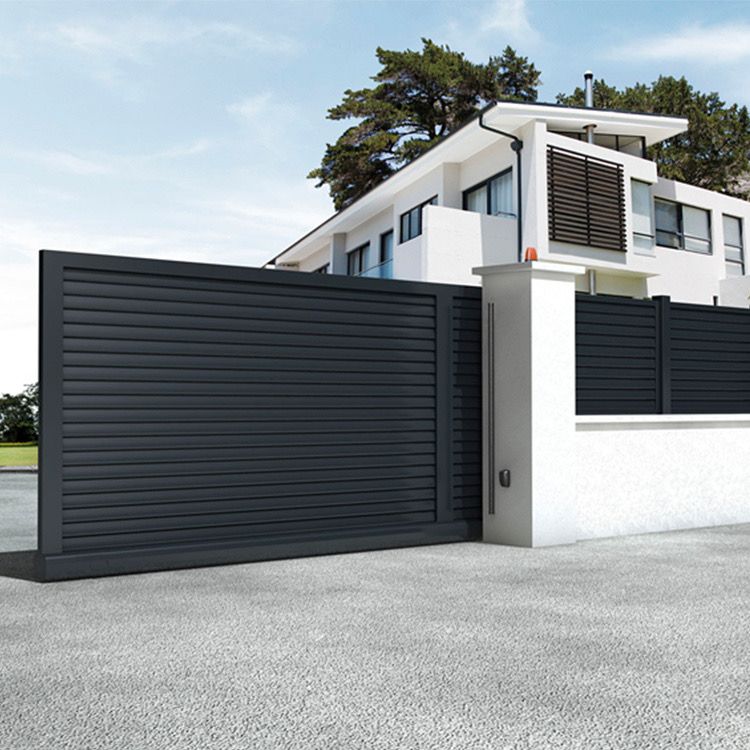

Sliding Gates
Sliding Gates are a modern and space-efficient solution for securing residential, commercial, and industrial properties. Designed to slide smoothly on tracks, these gates require minimal space for operation, making them ideal for areas with limited driveway or entrance space
Features
➣ These Sliding Gates are widely used and Economical option among all the types of gates
➣ Works on Precise machine cut toothed pinion along with galvanized rack arrangement
➣ Our sliding Gates are available in single side or double side sliding suggested to suit actual site condition
➣ Bottom rail made up of polished bright bar which is supported by heavy duty I-beam.
➣ Top Nylon guide rollers with bearings are used for smooth operation & to guide moving Leaf
➣ At each end-track stopper is placed to absorb any impact and to hold the gate in the open or closed position
➣ Vertical safety edge can be installed to protect against any damage or injuries in case of accidents
➣ Also These Motorised sliding gates are available with inbuilt hinged/Sliding type side gate for pedestrian use
➣ Electromechanical European make geared motors range 400 to 6000 kg for heavy gate application
Technical Specification
| Technical Specification | Description | |
|---|---|---|
| Product | Motorised Conventional Sliding Gate | |
| Gate Dimension | ||
| Width Min./Max. | Single Leaf : 1000/15000mm Double Leaf :1000/30000mm | |
| Height Min./Max. | 1000/3000mm Larger Dimension on request | |
| Opening Direction | Horizontal | |
| Mounting Location | Inside/ Outside | |
| Mounting Surface | Bottom Rail: RCC Columns : RCC | |
| Gate Design | ||
| Pattern | Standard Mild Steel Tubular pattern | |
| Internal vertical member | Heavy Duty Vertical Box sections (or Customized design available on request) | |
| Bottom Rail | Polished bright bar with I-beam support Dual track bottom rail for large opening gates as per design | |
