Aluminium polycarbonate sliding door

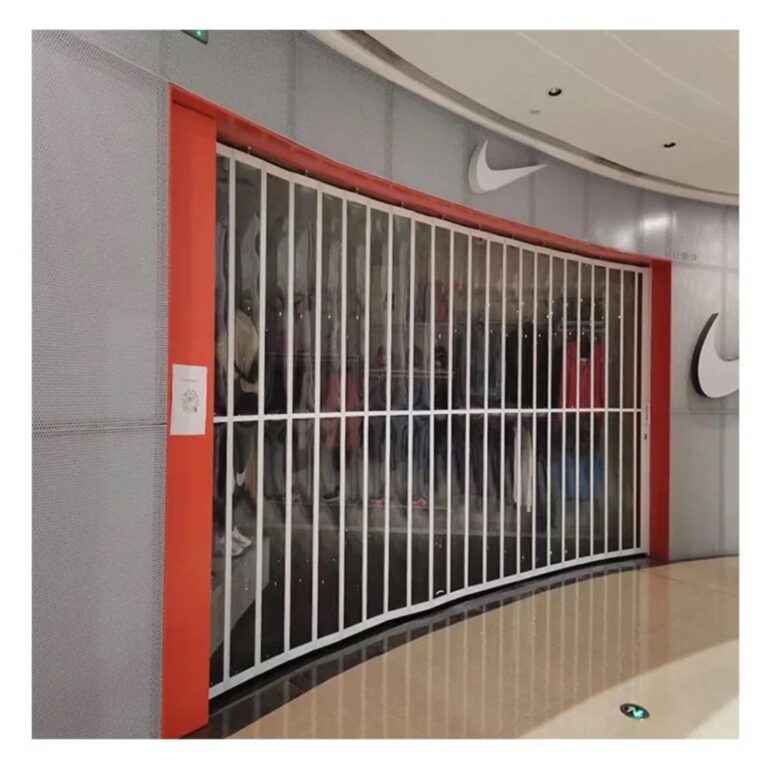

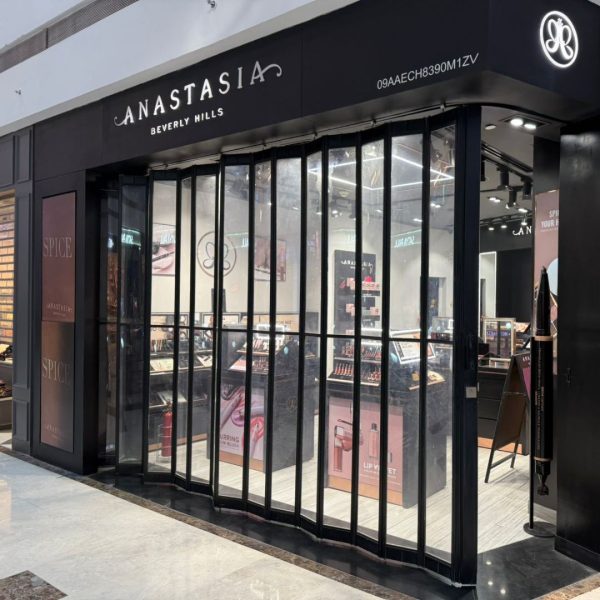

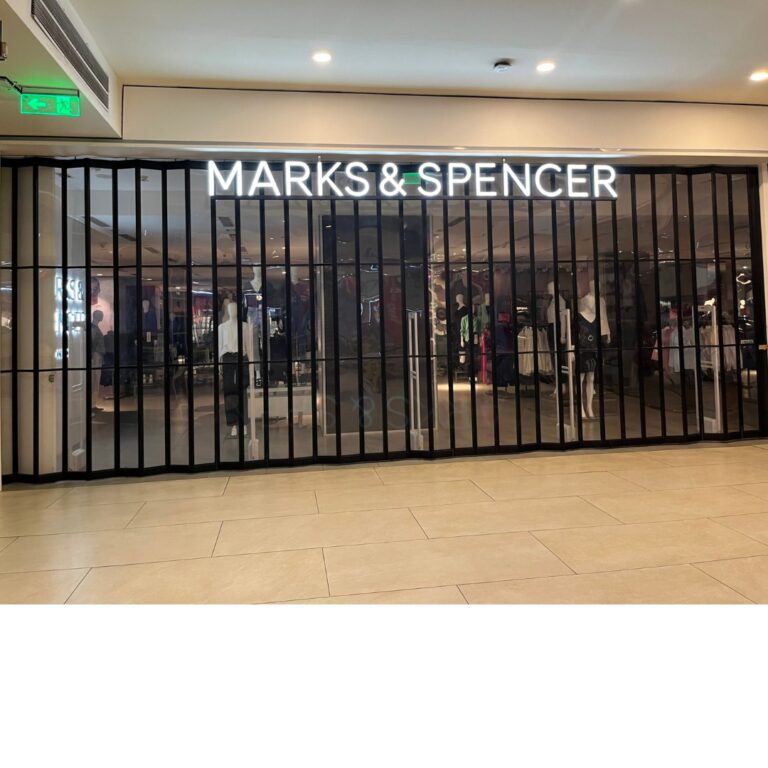

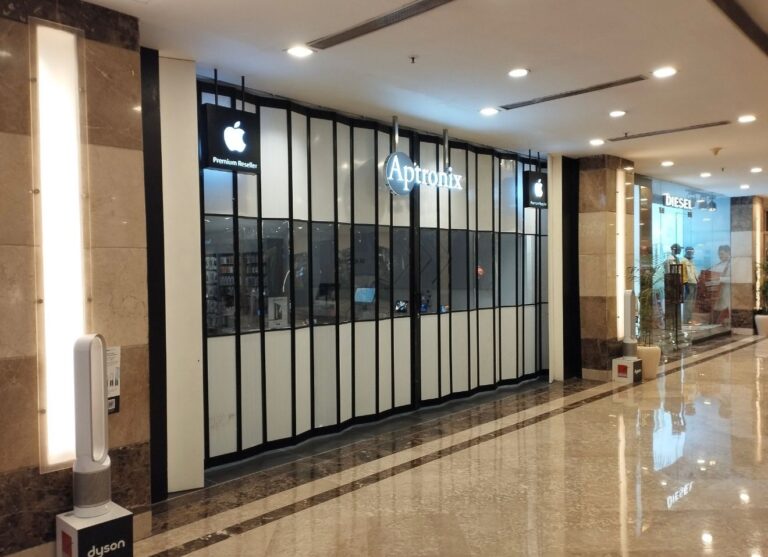

The Clear view Polycarbonate Folding Sliding Door is widely used in commercial centers and shopping malls
, when the shop opening is not straight and a roller shutter is not applicable, the side folding door is you best choice.
it also has many advantages such as elegant looks, affordable price, easy to install and burglary proof. when the shop
is closed, the goods can still be displayed to the customers.
Features
| Max width | 35meters | |
| Max Height | Manual 4.5m, motorized 6m | |
| Aluminum color | White, black, silver or custom color | |
| PC color | Transparent/white | |
| Panel width | 290 MM | |
| PC panel thickness | 1.5~2.0mm | |
| Pocket width | 8% of total width | |
| Operation | Manual or motorized | |
| Open direction | One side open or bifolding |
Technical Specification
Panel options:
➣ Single panel width: 290mm
➣ Polycarbonate panel: 2.2 – 3mm polycarbonate panel fixed with aluminum frame for burglary proof
➣ Operation: manual operation
Track System
➣ 50mm*50mm aluminum track for straight door opening, it can also be used for curve opening but need
pre-formation by bending machine
➣ 50mm*50mm aluminum track for curve opening. it can be bend easily and can also be used for straight openings.
Maximum size
➣ Maximum width of Polycarbonate Folding Sliding Door is 35meter,
➣ Maximum height is 4.5meter for manual operation door
➣ Maximum height is 6.0meter for motorized operation door
Lock and bolts
➣ Each folding door will be supplied with one set lock and two keys; the lock can be open from both sides.
➣ Gound bolts and dust cover will be provided 1set every 1meter width.
Aluminum Color
➣ The finish of aluminum is powder coating or anodize. the normal color is natural aluminum, white and black.
if you need other color, please send color samples, and we will customize color for you
Stacking pocket size
➣ The pocket size will be about 8% of the total door width, we will work out the detailed pocket size according to
your data.
