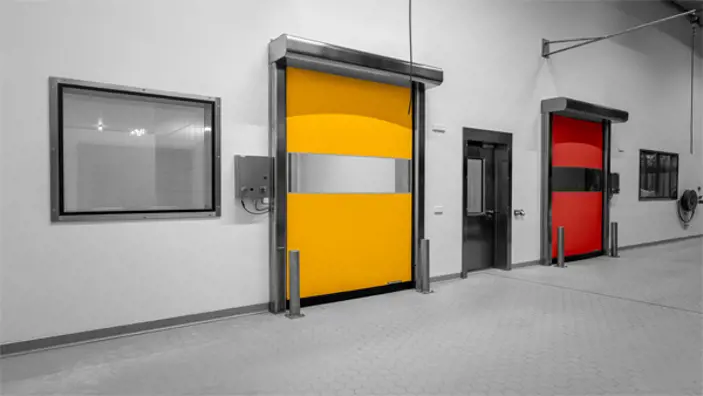

High Speed Doors
High Speed Doors are specially designed for industrial and commercial spaces where fast, efficient, and safe movement is essential. Built with advanced technology, these doors ensure quick opening and closing, helping to save time, improve workflow, and reduce energy loss. Their high-speed operation also minimizes dust, noise, and temperature variations, making them ideal for warehouses, factories, food processing units, cold storage, and clean room
Features
➣ Specially designed fabric door for indoor applications requiring high frequency of operations
➣High speed doors are CE certified
➣ Special EPDM seal between lateral parts and curtains, providing complete sealing & prevention against dust & air contamination.
➣ Speed adjustment ranging from 0.8m/sec to 1.5m/sec via variable frequency converter which also helps in soft starting & soft stopping of the door.
➣ Fabric RAL colours available to match the building aesthetics
➣ Newly designed types of side guides incorporating wind hooks to hold higher wind velocity
➣Tailor made fabric justifying the industrial requirements
➣ European make motor & controller suitable for high speed doors.
Technical Specification
| Technical Specification | Description | |
|---|---|---|
| Product | High Speed Doors – Roll Up | |
| Doors Dimension | ||
| Width Min. /Max. | 1000/6000mm | |
| Height Min. /Max. | 1000/6000mm Larger Dimension on request | |
| Opening Direction | Vertical | |
| Mounting Location | Inside/Outside | |
| Opening/Closing Speed | 0.8 m/sec to 1.5m/sec with VFD | |
| Doors Structure | ||
| Door Curtain | Self extinguishing PVC Fabric-European Make. Fabric standard complies with (DIN) EN 12641-2. European PVC fabric complying to EN12641-2 & having following properties :
| |
| Curtain Color | Standard: RAL 5010(Blue); RAL 3002 (Red); RAL 7042 (Grey); RAL 2004 (Orange); RAL 5012 (Light Blue); RAL 1021 (Yellow) Optional: Any other color on request. | |
| Stiffeners | Modular section inserted at specific intervals as per opening dimensions | |
| Side Guides | Self supporting Aluminium detachable profile sections Finish : Powder Coated off white Box type guides with wind hooks as optional to carry higher wind velocity | |
| Bottom Profile | Aluminium profile Finish : Powder Coated off white | |
| Roller Shaft | Al shaft assembly upto 4 m above 4 m MS shaft assembly. | |
| Hood Cover (Optional) | Made of G.I sheet with off white powder coating | |
