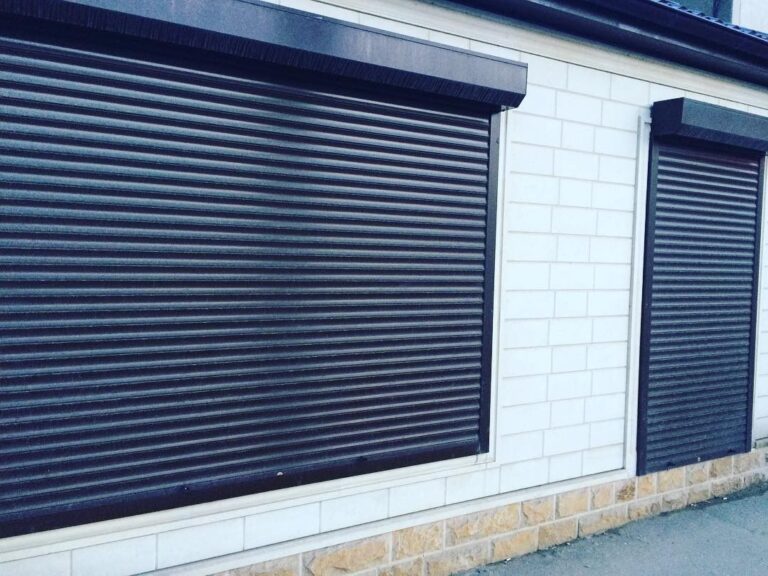

Galvanised Iron Insulated Shutters
Galvanised Iron Insulated Shutters are specially designed to provide maximum security, durability, and energy efficiency for industrial, commercial, and residential applications. Made from premium galvanised iron, these shutters are strong, rust-resistant, and capable of withstanding harsh weather conditions. The insulation layer helps in maintaining temperature control, reducing noise, and improving energy savings, making them an ideal choice for warehouses, factories, cold storage, and showrooms
Features
➣ The flexible roller shutter curtain can yield and springs back in case of any collision; the slats are rarely damaged or have to be replaced.
➣ The shutter slats continue to look good after many years of use thanks to their robust and attractive profiling
➣ Aluminium Side guides incorporate twin vertical Rubber seal to the outer face of the guide channel.
➣ A specially designed Aluminium extruded bottom section with rubber bottom seal protects the ground contact area
➣ Motorized rolling shutters are self sufficient and can be operated by a single push button
➣ Our shutters are in-build with high performance drives and intelligent controls
➣ Our Drives have weight carrying capacity up till 3000Kgs
➣ In case of power failure, these doors can be operated manually using a hand crank or chain drive
Technical Specification
| Technical Specification | Description | |
|---|---|---|
| Product | Motorized Insulated Double Wall rolling Shutters | |
| Door Dimension | ||
| Width Min./Max. | 1000/8000mm | |
| Height Min./Max. | 1000/8000mm Max. Area 64.0Sqm Larger Dimension on request | |
| Opening Direction | Vertical | |
| Mounting Location | Inside | |
| Mounting Surface | Concrete, Steel | |
| Opening/Closing Speed | 0.05m-0.1m/Sec | |
| Wind Resistance | Up to 120Km/Hr | |
| Door Structure | ||
| Slat Material | Insulated ,Pre-Coated Galvanized Steel Double Wall Slats | |
| Slat Profile | Micro Profile | |
