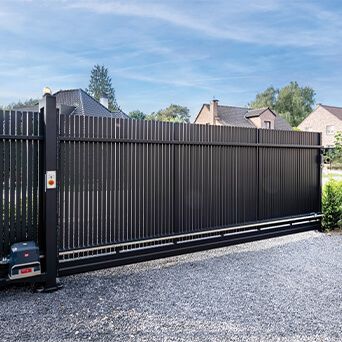

Cantilever Sliding Gates
Cantilever Sliding Gates are a premium solution for securing residential, commercial, and industrial properties where smooth, reliable, and space-saving operation is required. Unlike conventional sliding gates, cantilever gates do not require a ground track, as they are supported by rollers and a counterbalance system, making them ideal for uneven surfaces or areas prone to debris accumulation.
Features
➣ Perfect gate solution where one does not require any grouting on the floor
➣ Cantilever gate has Imported Italy make cantilever track and pair of bottom trolley rollers
➣ No risk of wear or curvature of bottom track due to passage of Lorries or heavy vehicles.
➣ These types of Cantilever sliding gates can be easily installed on a non-stabilized or perfectly horizontal ground.
➣ Our Automatic Cantilever Sliding Gates are virtually maintenance free as there is no accumulation of dust & water on the track.
➣ Available with hinged side & inbuilt wicket gates for pedestrian use.
➣ Electromechanical gear motors range: 400 to 6000Kg for heavy gate application
➣ Gate can be manually operated in case of power failure.
➣ Gates can be interlocked with entrance boom barrier as additional safety
Technical Specification
| Technical Specification | Description | |
|---|---|---|
| Product | Automatic Cantilever Sliding Gate | |
| Gate Dimension | ||
| Width Min./Max. | Single Leaf : 1000/15000mm Double Leaf : 2000/30000mm | |
| Height Min./Max. | 1000/2500mm Larger Dimension on request | |
| Opening Direction | Horizontal | |
| Mounting Surface | Bottom Rail: RCC Columns : RCC | |
| Gate Structure | ||
| Pattern | Standard Mild Steel Tubular pattern | |
| Outer Frame | Heavy Duty tubular box section (or Customized design available on request) | |
| Internal members | Heavy Duty tubular box section (or Customized design available on request) | |
| Bottom Rollers | European make high performance dual pattern hangers equipped with ball bearings | |
